Perforated Gypsum

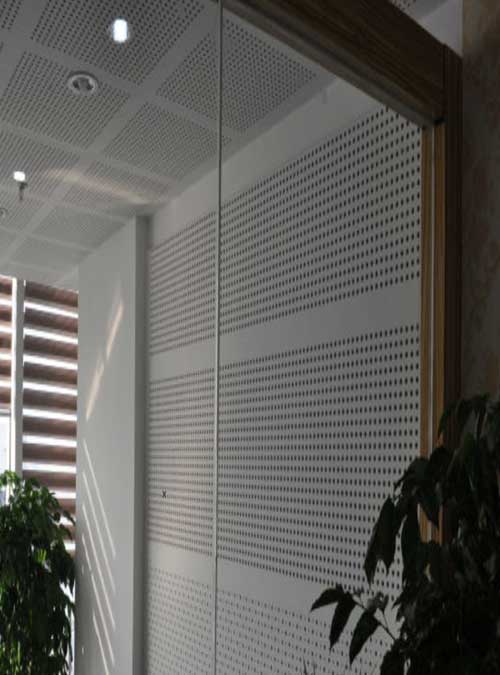

Chord’s ‘Perforated Gypsum’ Panel having sizes 600*600 mm and thickness of 12.5 mm with perforation and the wall make up of many resonant cavities when air molecules pass the holes, the resonant cavities will consume large quantities of sound energy. Perforated gypsum panel is one of the best sound absorption products and also enhance the interior decoration. These boards are used for ceiling and wall applications where height is low and mild acoustic is required.


  • Weight Capacity (Kg) 2.84 Kg/Sqft.
  • Density of 800 Kgm3
  • Suitable for any applications
  • White in Color
SKU: MS015-1-1-1-1 Category:

Description

Chord’s ‘Perforated Gypsum’ for walls can be installed on G.I studs 2400mm X 50mm web thickness 0.5mm, flanges 15 & 50mm fully knurled giving it high strength, hot dipped galvanized steel with 120GSM zinc coating specially designed for Acoustic vibration management.

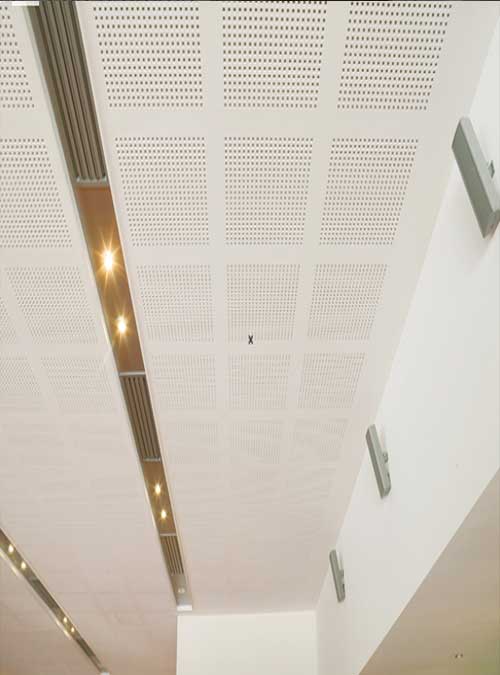

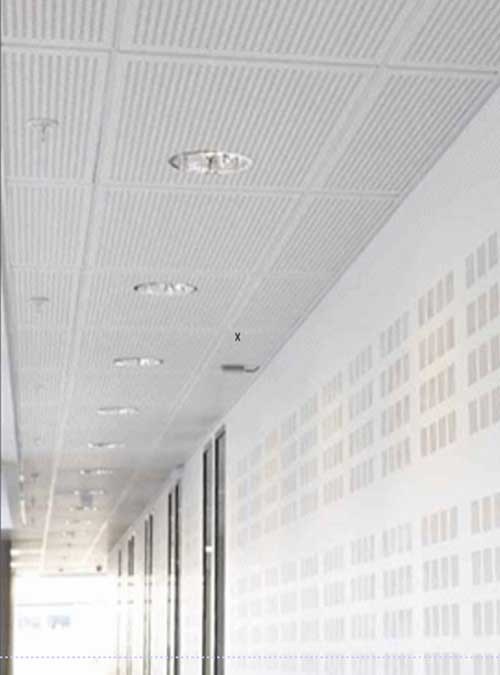

Chord’s ‘Perforated Gypsum’ for ceiling can be installed on T24 grid system made of 0.30mm thick sheet or 0.6mm thick grid, Main ‘T’ length 3000mm to be placed at 600mm centre to centre and secondary cross ‘ T’ of length 600mm inter locked, web minimum 35mm. as per the choice of the architect/engineer specially designed for Acoustic vibration management

Additional information

Weight 1 kg
Dimensions 100 × 30 cm
